HALTECH ELITE ECU MOUNT SUIT NISSAN SILVIA S13 180SX

Haltech Elite ECU mount - Nissan Silvia S13/180SX

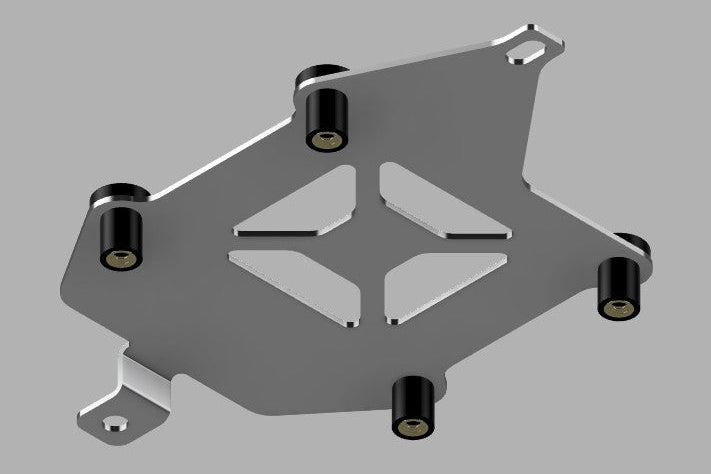

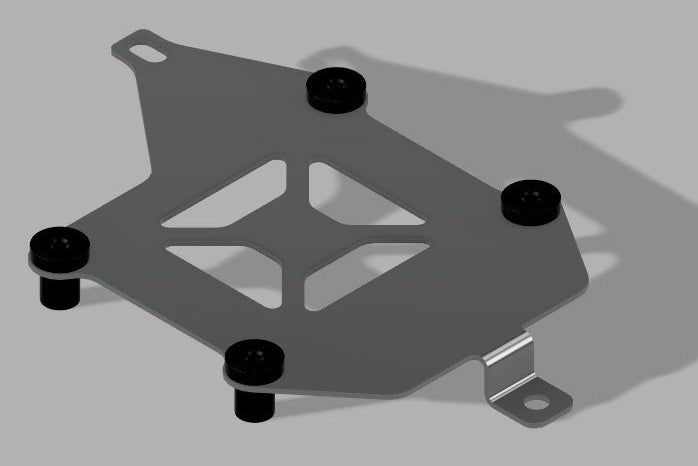

The ECUmounts bracket range provides a vehicle-specific, rigid, and vibration-isolated mounting solution for installing Haltech Elite ECUs into the factory ECU position of the Nissan Silvia S13 and 180SX. Designed and manufactured in southeast Melbourne for performance and motorsport applications. None of our branding appears on the mount — you take ownership of your hard work.

Available Options

• Elite 1500 / 2500 – Designed specifically to mount the Haltech Elite 1500 or 2500 ECU in the factory passenger footwell position using existing mounting points.

• Elite 550 / 750 / 950 – Designed to mount the Haltech Elite 550, 750, or 950 ECU in the factory passenger footwell position using existing mounting points.

Both options provide a clean, OEM-style installation that keeps your wiring neat and protected while maintaining service access to the ECU.

Features

• Factory-fit design – Direct bolt-in fitment to the factory ECU bracket points in the S13 / 180SX passenger footwell.

• Compact – Maintains the ECU’s footprint for a tidy, low-profile install and allows for a cable to be installed permanently with the trim on.

• 3mm aluminium construction – Rigid, lightweight, and durable.

• Isolated mounting – Rubber wellnuts reduce vibration transfer and protect the ECU.

• Stainless steel hardware included – Complete bolt kit supplied for both options.

• CNC cut and folded – 3D-modelled, laser-cut, and folded for precision fitment to the S13 / 180SX chassis.

• Australian made – Designed, developed, and produced in southeast Melbourne.

Included

• Haltech Elite ECU Mount –  (Choose ECU Type)

• Rubber wellnuts (x4)

• Stainless steel bolts (x4)

Mounts directly to the factory ECU bracket position. No drilling or modification required.

ECU not included.
